Description

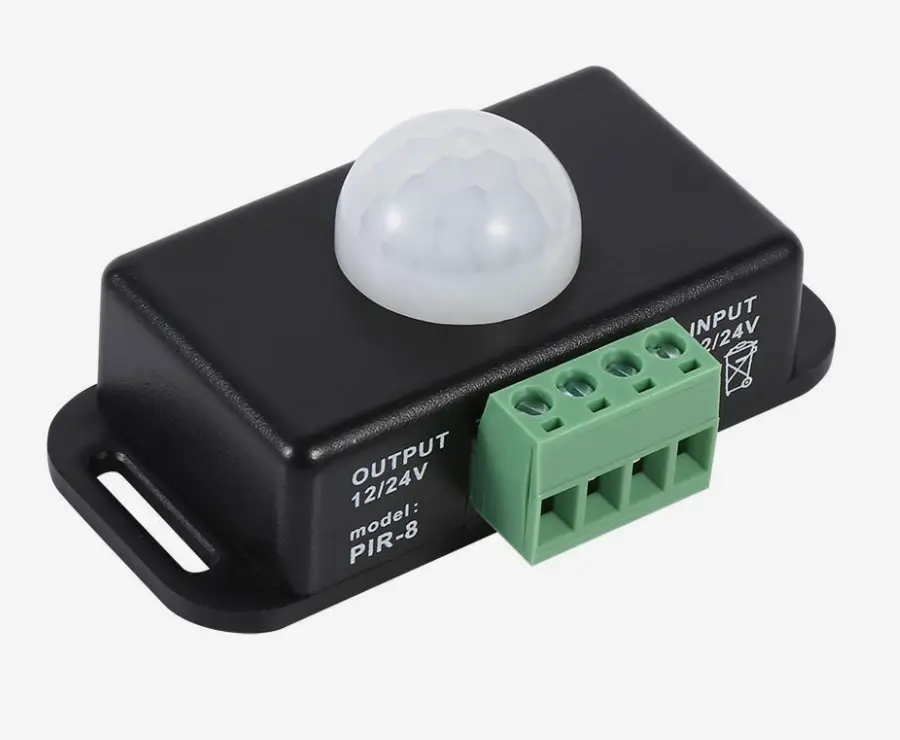

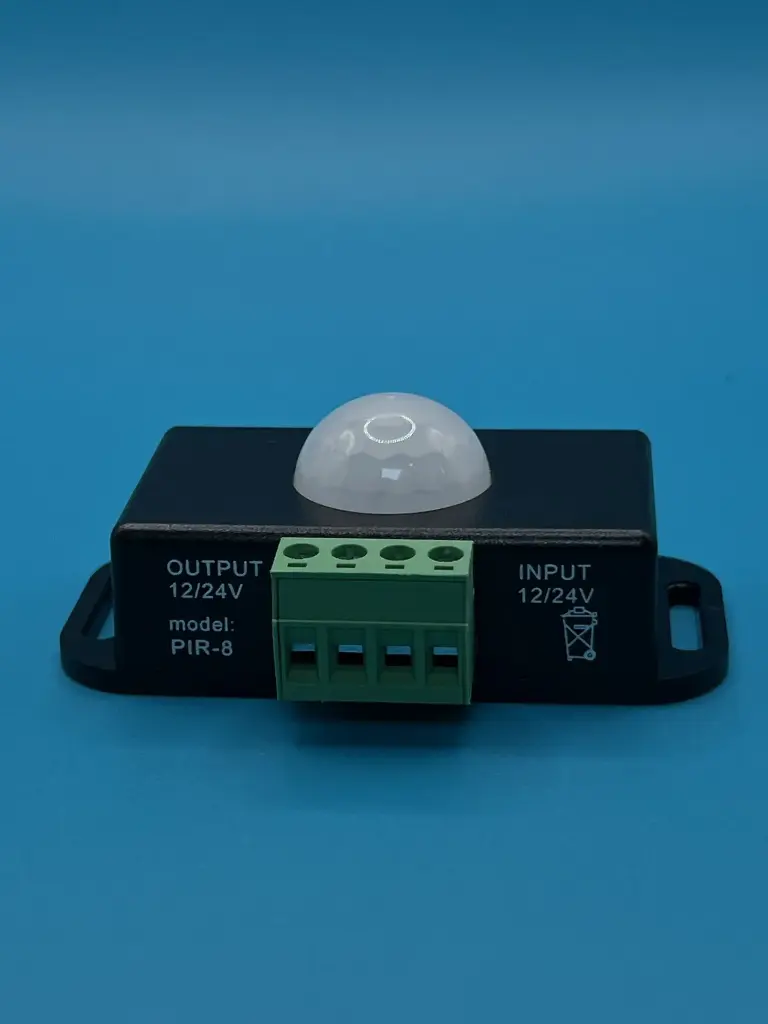

The Motion Sensor Switch is a compact and reliable infrared (PIR) sensor designed to automatically control lighting based on human motion. Made from high-quality plastic and metal materials, it is durable, easy to install, and ideal for hands-free lighting control in both residential and commercial applications.
This switch detects infrared radiation emitted by the human body and automatically turns lights on when motion is detected, and off when no movement is sensed for a preset duration. It ensures smooth and stable light operation with no flickering, and is compatible with various types of lighting such as LED strips, energy-saving lamps, fluorescent lights, and incandescent bulbs.
Key Features
- High-Quality Construction: Made from durable plastic and metal materials for long-lasting performance.
- Automatic Lighting Control: Lights automatically turn on/off based on motion detection.
- Smooth Light Operation: Ensures stable illumination with no flickering.
- Adjustable Delay Time: Turn-off delay can be set between 1–10 minutes.
- Wide Compatibility: Suitable for LED strips, LED lamps, fluorescent, incandescent, and energy-saving lamps.
- Infrared Sensing: Detects human body infrared signals for efficient and reliable operation.
- Easy Installation: Simple wiring and compact design for quick setup.
Specification
- Material: Plastic and Metal
- Type: PIR Motion Sensor Switch
- Color: Black (as shown in image)
- Working Temperature: -20°C to +60°C
- Input Voltage: 10.5–16V or 21–32V
- Output Voltage: 10.5–16V or 21–32V
- Induction Distance: Up to 8 meters
- Detection Angle: 60°
- Output Current: <6A
- Delay Time: Adjustable (1–10 minutes)
- Dimensions: 7.7 × 4.6 × 3.4 cm
- Weight: Approx. 50 g
Application
- Automatic lighting control in corridors, stairways, garages, washrooms, and storage areas
- Ideal for LED strips and low-voltage lighting setups
- Suitable for home, office, and commercial automation projects
