Description

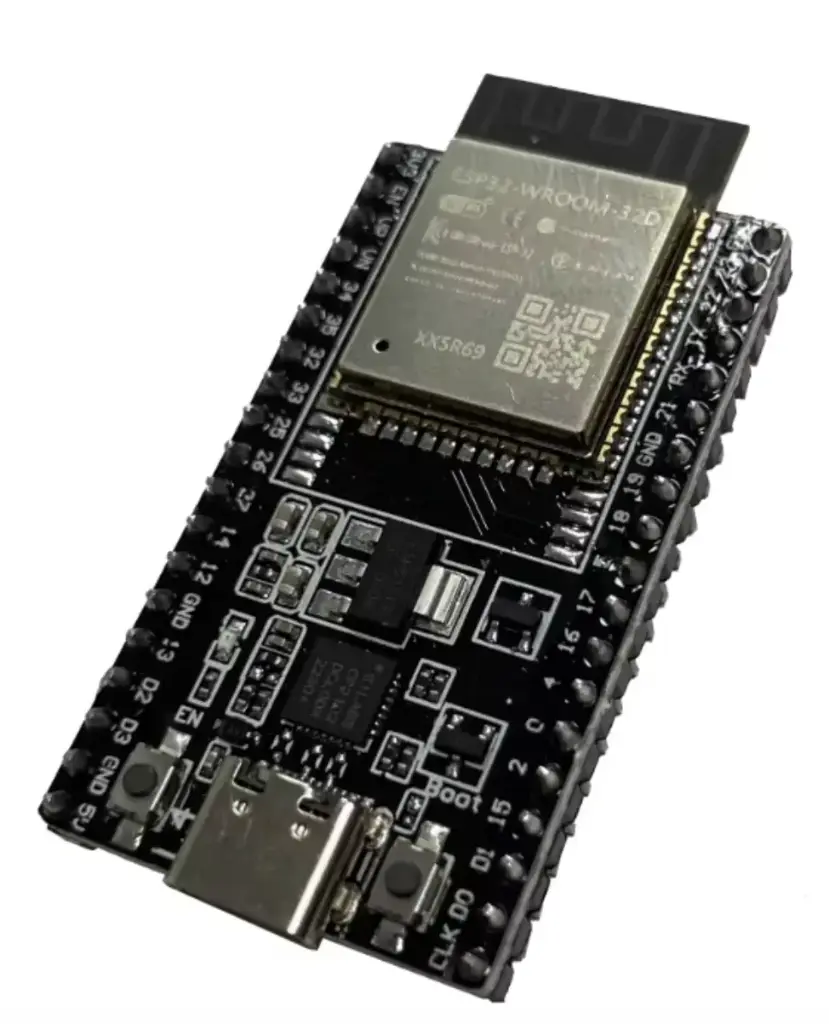

The ESP32-DevKitC is a compact and powerful development board based on the ESP32-WROOM-32D module, designed for rapid prototyping of IoT (Internet of Things) and wireless applications. Combining Wi-Fi and Bluetooth (BLE) connectivity with a dual-core Tensilica LX6 processor, it delivers high performance, low power consumption, and versatile interfacing options for embedded systems and connected devices. With strong community support and compatibility with popular programming environments, the ESP32-DevKitC is ideal for both beginners and professionals.
Key Features
- Microcontroller: ESP32-WROOM-32D module with dual-core Tensilica LX6 processor
- Wireless Connectivity: Integrated Wi-Fi (802.11 b/g/n) and Bluetooth (Classic + BLE)
- Peripheral Interfaces: GPIOs, SPI, I²C, UART, ADC, DAC, PWM, and more
- Programming Support: Compatible with Arduino IDE, ESP-IDF, and other development environments
- On-board Components: USB-to-serial converter, voltage regulator, and reset button included
- Security Features: Hardware-based encryption and cryptographic accelerators for secure IoT communication
- Flexible Power Options: Can be powered via USB or external 5V DC source
- Compact Design: Slim form factor with mounting holes for easy integration
- Community & Documentation: Backed by extensive resources, tutorials, and open-source examples
Specification
- Module: ESP32-WROOM-32D
- Processor: Dual-core Tensilica LX6, up to 240 MHz
- Memory: Up to 520 KB SRAM, supports external SPI RAM
- Flash Memory: Integrated (varies by module version)
- Operating Voltage: 3.3V (regulated from USB or external 5V supply)
- Connectivity: Wi-Fi (802.11 b/g/n) and Bluetooth (BLE + Classic)
- Interfaces: UART, SPI, I²C, I²S, PWM, ADC, DAC, GPIO
- Power Supply: 5V DC via USB or external power input
- Dimensions: Approximately 52mm × 28mm
- Operating Temperature: -40°C to +85°C
Application
- IoT Devices: Smart sensors, connected appliances, and monitoring systems
- Home Automation: Lighting, climate, and security control systems
- Wearables: Bluetooth-enabled fitness and health monitoring devices
- Industrial Automation: Remote control, data acquisition, and machine monitoring
- Prototyping: Ideal for developing and testing wireless embedded systems
Datasheet: For detailed technical information, refer to the ESP32-DevKitC Datasheet.
