Description

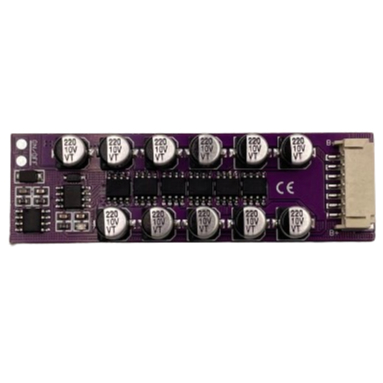

The 5–6S 1.2A LiPo Balancing Board is a compact, high-efficiency voltage equalizer designed to maintain balanced charging and discharging across all cells in 5-cell (5S) and 6-cell (6S) LiPo battery packs. It ensures consistent cell voltages, improving performance, extending battery life, and enhancing safety. Perfect for drones, RC systems, and embedded electronics.
Key Features
- Supports 5S to 6S LiPo Packs: Works with both 5-cell and 6-cell battery configurations.
- Automatic Passive Balancing: Equalizes voltage during both charge and discharge cycles.
- High Balancing Current: Up to 1.2A active balancing current for faster equalization.
- Adaptive Balancing:
- < 0.1V difference → 0.5–0.7A current
- 0.2V difference → 1.2A current
- Compact Design: Lightweight and easy to integrate into RC and embedded systems.
- Improved Battery Health: Helps prevent overcharging and deep discharging of individual cells.
Specification
- Operating Voltage (per cell): 2.0V – 4.5V
- Balancing Current: 0.5–1.2A (dynamic based on voltage difference)
- Supported Battery Packs: 5S or 6S LiPo
- Operating Mode: Active voltage equalization
- Connector Type: JST-XH 6S balance connector
- Dimensions: Compact and lightweight (varies by model)
- Efficiency: High passive balancing efficiency for extended battery life
Application
- LiPo Battery Maintenance & Protection – Prevents imbalance across multi-cell packs.
- Drones & UAVs – Ensures stable flight performance and longer battery life.
- RC Cars & Aircraft – Keeps all cells evenly charged for consistent power output.
- Portable Electronics – Ideal for devices using 5S or 6S LiPo configurations.
- Embedded Systems & Robotics – Provides reliable power management for high-demand circuits
