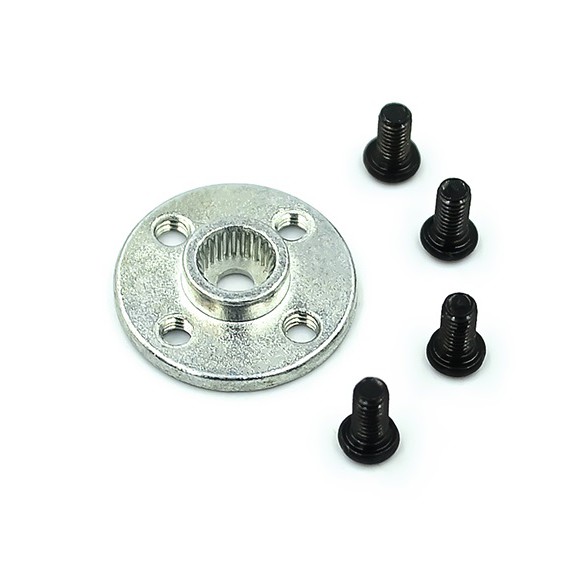

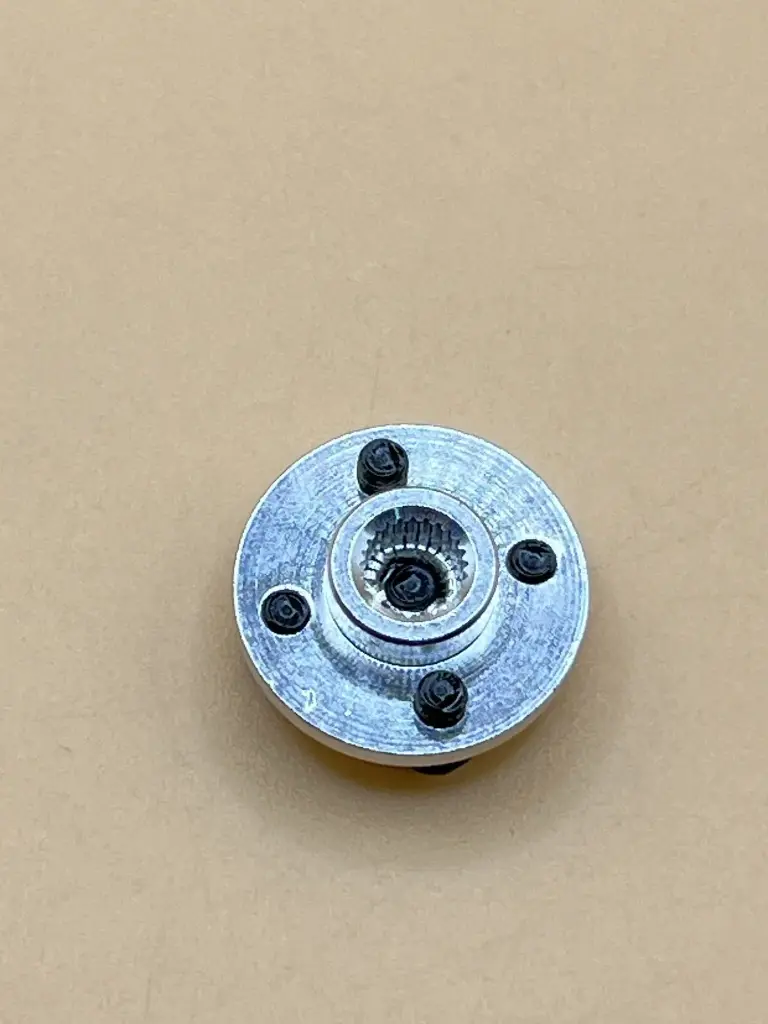

The 25T Servo Metal Rudder Arm is a precision-engineered aluminum alloy horn designed for standard servo motors. With a sleek silver-white oxidized surface, this rudder arm offers exceptional strength, stability, and corrosion resistance. It’s an ideal upgrade for plastic servo horns, especially in high-torque or high-vibration environments such as robotics and RC applications.

Features

  • Made from high-quality aluminum alloy for increased durability

  • Silver-white surface oxidation for corrosion resistance and sleek aesthetics

  • 25-tooth spline (25T) ensures secure fit on compatible servo motors

  • Tapped M3 mounting holes for easy and strong mechanical connections

  • Lightweight yet strong – ideal for demanding applications

  • Compatible with standard-sized servos (approximately 40×20×36mm)

Specifications

  • Material: Aluminum alloy

  • Surface treatment: Silver-white anodized finish

  • Installation hole spacing: 14mm

  • Steering wheel (horn) diameter: 20mm

  • Spline (flower tooth) diameter: 5.5mm

  • Number of spline teeth: 25 (25T standard)

  • Mounting holes: Four tapped M3 holes

  • Compatible servo size: Standard servos (~40mm × 20mm × 36mm)

Applications

  • RC cars, boats, airplanes

  • Robotic arms and joints

  • Pan-tilt camera modules

  • Mechanical linkages and steering systems

  • Custom DIY and maker projects involving servo motion
