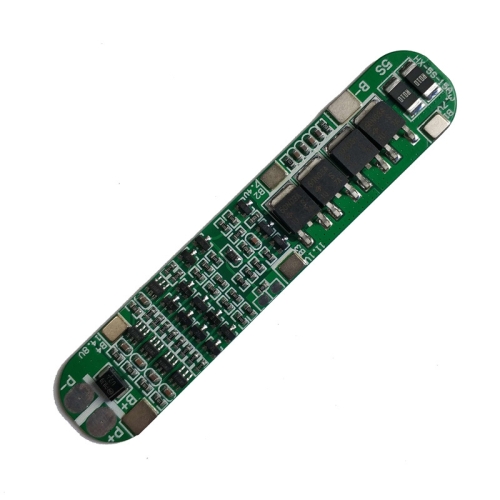

The 5S 18.5V 18650 Straight Protection Module is a combined charger and protection system designed for 5-cell lithium-ion battery packs. It safeguards your batteries from overcharge, over-discharge, overcurrent, and short circuits, ensuring extended battery life and safety. Ideal for DIY battery pack projects, robotics, and energy storage systems, this BMS allows you to use standard power supplies without requiring specialized lithium chargers.

Key Features

  • Supports 5S (18.5V) 18650 lithium-ion batteries

  • Dual function: battery protection and charging management

  • Overcharge, over-discharge, short circuit, and overcurrent protection

  • Compact, slim straight module design for easy integration

  • Reliable 15A continuous discharge and charge support

  • No need for a special lithium battery charger

  • Quick overcharge protection response (0.5 seconds)

Specifications

  • Battery Type: 5S 18650 Lithium-Ion (3.7V per cell)

  • Total Nominal Voltage: 18.5V

  • Charging Voltage: 21V

  • Max Continuous Discharge Current: 15A

  • Max Continuous Charging Current: 15A

  • Overcharge Protection Delay: 0.5s

  • Module Dimensions: 98.5 x 12 x 3.7mm

  • Protections Included:

    • Overcharge

    • Over-discharge

    • Overcurrent

    • Short circuit

Applications

  • Custom 5S 18650 lithium-ion battery packs

  • DIY energy storage systems

  • Robotics & RC devices

  • Solar-powered storage units

  • E-bike and portable device battery systems

  • Backup power packs
