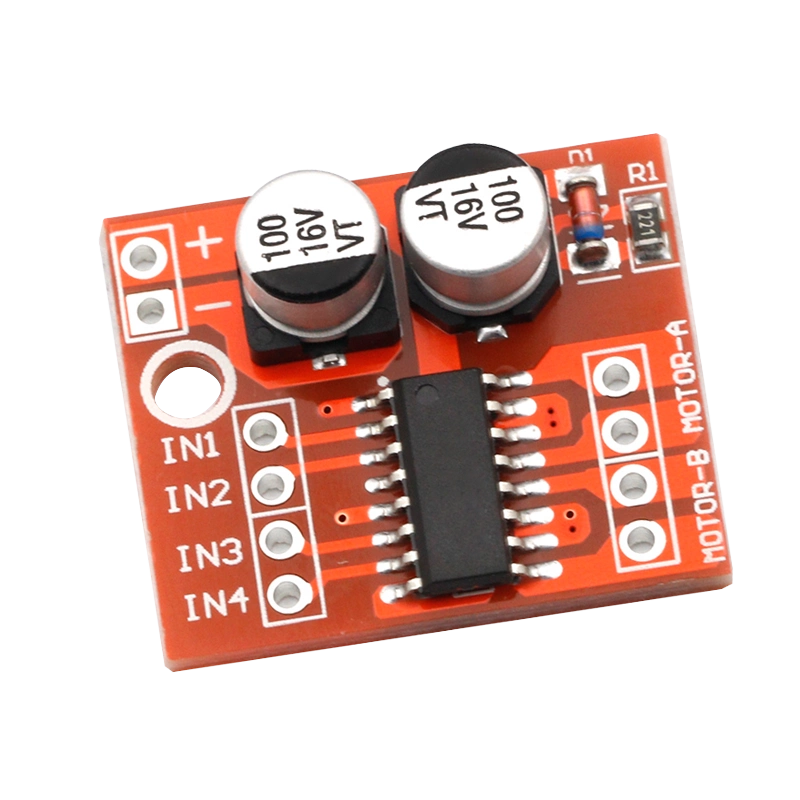

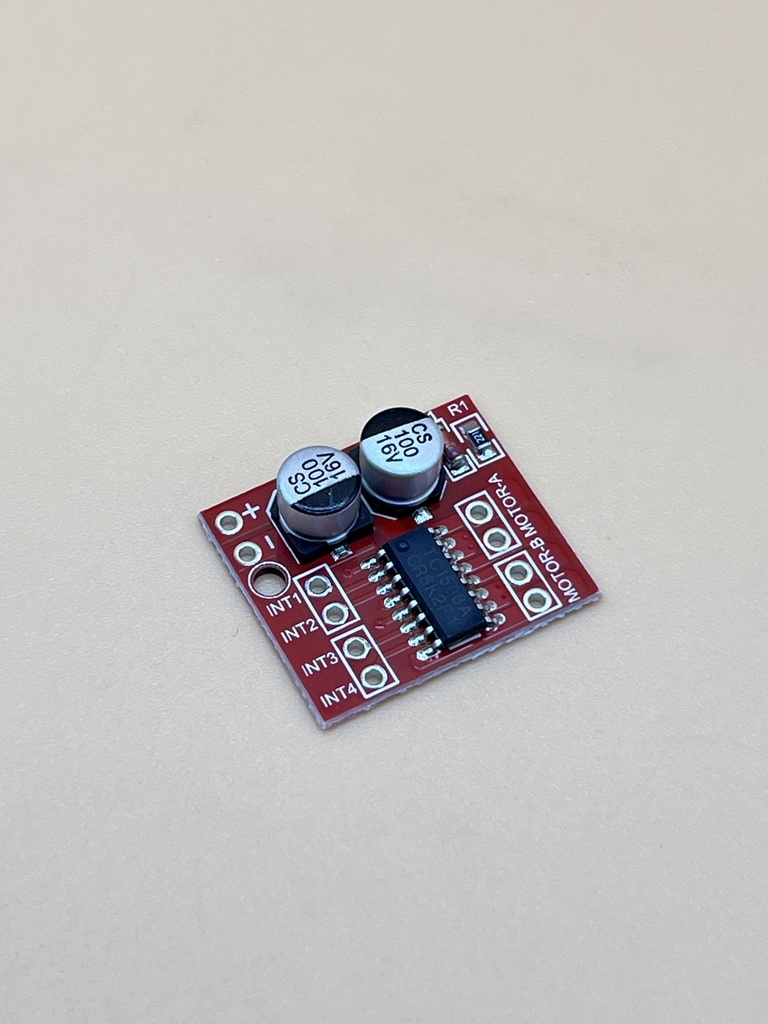

The Mini L298N 2-Way DC Motor Driver Board is a compact and efficient motor driver module based on a dual H-bridge circuit. It is ideal for driving two DC motors or one 4-wire stepper motor in smart cars, robots, and DIY electronics projects. With a wide voltage range of 2V to 10V, this board supports PWM speed control and direction reversal, offering flexibility for motor-based applications.

Key Features:

  • Dual H-bridge motor driver for 2 DC motors or 1 stepper motor

  • Operates from 2V to 10V supply voltage

  • 1.5A continuous output current, up to 2.5A peak

  • Supports PWM speed control and bidirectional rotation

  • Low power consumption — ideal for battery-powered devices

  • Thermal protection with auto-recovery

  • Compact design with mounting holes for easy integration

  • Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers

Specifications:

  • Module Supply Voltage: 2V – 10V

  • Signal Input Voltage: 1.8V – 7V

  • Continuous Current per Channel: 1.5A

  • Peak Current: 2.5A

  • Standby Current: < 0.1µA

  • Protection: Thermal auto-recovery

  • Dimensions: 24.7mm x 21mm x 7mm

  • Mounting Hole Diameter: 2mm

  • MOSFET-Based Switching: Low on-resistance

Applications:

  • Arduino smart car projects

  • Two-wheel robots and tank treads

  • Stepper motor control

  • Toy cars and RC vehicles

  • Low-power automation systems

  • PWM motor control for prototyping
