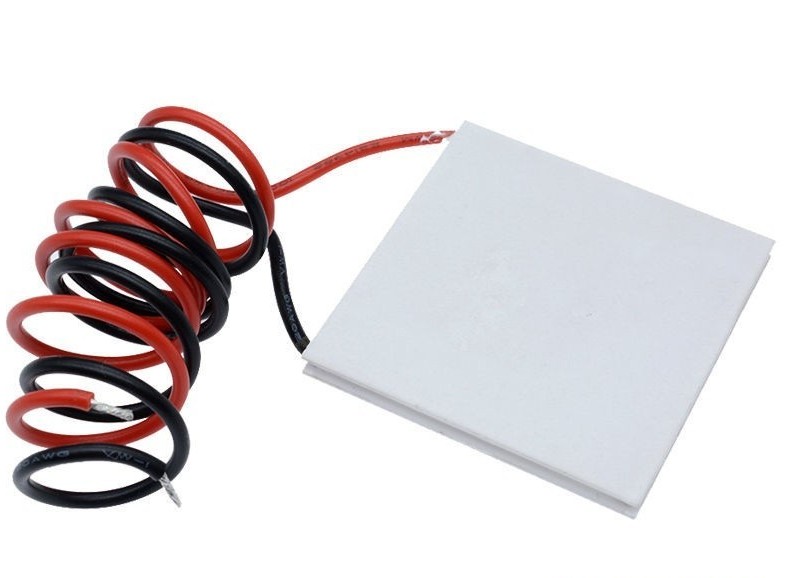

The TEC1-12712 Thermoelectric Peltier Module is a high-performance solid-state heat pump designed for precision cooling or heating. With 127 semiconductor junctions sandwiched between ceramic plates, it offers efficient heat transfer by applying DC power. The cooling direction is controlled by polarity, making it simple to reverse operation from cooling to heating.

Key Features:

  • Reversible Function: Works as both a cooler and heater by reversing polarity

  • High ΔT Capability: Up to 67°C temp difference between hot/cold sides

  • High Power Output: 12A current rating for rapid cooling

  • Compact Form Factor: 40mm square for flexible mounting in small spaces

  • Multi-Purpose Use: Ideal for electronics cooling, lab experiments, or custom cooling projects.

Specifications:

  • Model: TEC1-12712

  • Operating Voltage: 12V DC

  • Maximum Voltage (Vmax): 17.2V DC

  • Operating Current: 12A

  • Maximum Temperature Differential (ΔT): 67°C

  • Number of Thermocouples: 127 junctions

  • Dimensions: 40mm x 40mm x 3.3mm

  • Polarity Reversible: Yes (for heating or cooling)

  • Material: Ceramic with internal semiconductors

  • Color: White with insulated leads.

Applications:

  • CPU/GPU/laser diode cooling

  • DIY mini refrigerators or wine coolers

  • Water coolers and drink chillers

  • Battery or enclosure thermal management

  • Scientific thermal experiments

  • Thermal cycling applications
