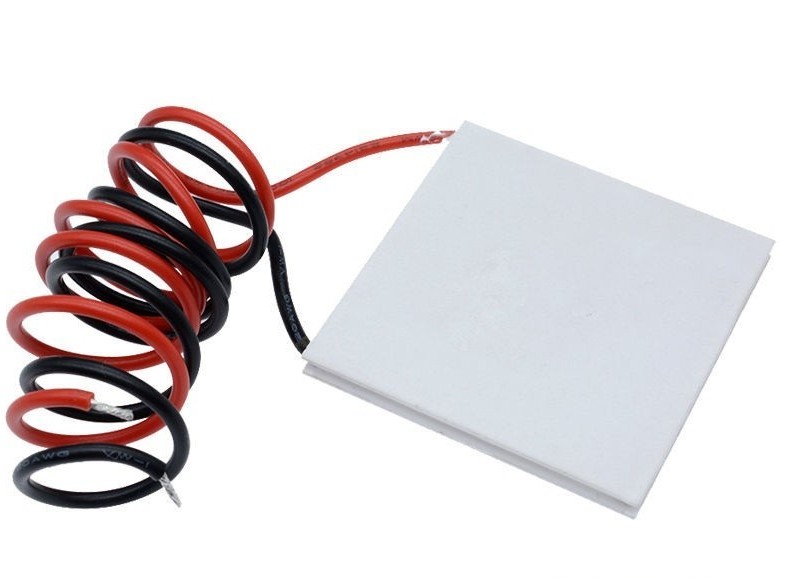

SP1848-27145

Key Features:

• Heat-to-Electricity Conversion – Generates DC voltage from temperature differences

• High Operating Temperature – Up to 120°C for maximum thermal efficiency

• Ready to Use – Includes long 350mm leads for easy integration

• Sealed Design – Moisture-resistant and environmentally durable

• Compatible with Booster Boards – Easily scales up voltage for 5V USB output

• Lightweight & Compact – Only 30g, ideal for portable and embedded systems

Technical Specifications:

• Model: SP1848-27145

• Open Circuit Voltage: 4.8V

• Operating Temperature Range: 0°C to 120°C

• Maximum Temperature: 120°C

• Module Dimensions: 40mm x 40mm x 3.6mm

• Weight: 30g

• Wire Length: 350mm

• Application Type: Power generation only (not cooling)

• Protection: Moisture-sealed with NM static protection

Applications:

• Off-grid power generation

• Waste heat recovery

• Emergency phone charging (with booster board)

• Educational experiments

• Eco-friendly energy harvesting

• DIY thermoelectric projects
