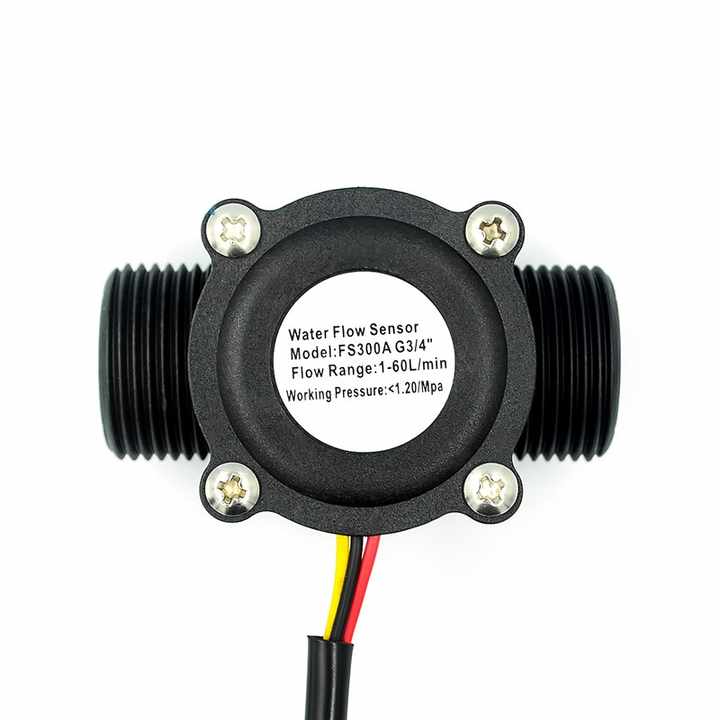

The FS300A 3/4-inch Water Flow Sensor is a high-precision, durable device designed to measure water flow in a wide range of industrial and domestic applications. It combines a magnetic flow rotor, a Hall-effect sensor, and a robust plastic valve body to reliably detect flow rates from 1 to 60 liters per minute.

Key Features:

  • Real-Time Flow Detection: Proportional pulse output based on flow rate

  • Easy to Integrate: Simple digital pulse output to microcontrollers (Arduino, ESP32, etc.)

  • Wide Voltage Range: Operates on 3.5V–24V for flexible compatibility

  • Rugged Build: Designed for continuous use under 1.2MPa pressure

  • Low Power Consumption: Efficient Hall sensor electronics

Specifications:

  • Model: FS300A

  • Port Size: 3/4 inch (BSP thread)

  • Operating Voltage: 3.5V – 24V DC

  • Flow Rate Range: 1 – 60 L/min

  • Output Signal: Pulse (digital)

  • Working Pressure: <1.2 MPa

  • Sensor Type: Hall-effect

  • Material: Durable plastic body

  • Response Time: <0.5s

  • Working Temperature: 0°C – 80°C

Applications:

  • Water heaters and boilers

  • Water dispensers and purifiers

  • Agricultural irrigation monitoring

  • Smart home water management systems

  • Industrial water usage measurement
