3.2 inch capacitive touch SPI LCD

https://www.hub360.cc/web/image/product.template/16931/image_1920?unique=d4f4b80
(0 review)

₦ 62,900.00 62900.0 NGN ₦ 62,900.00

₦ 62,900.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us

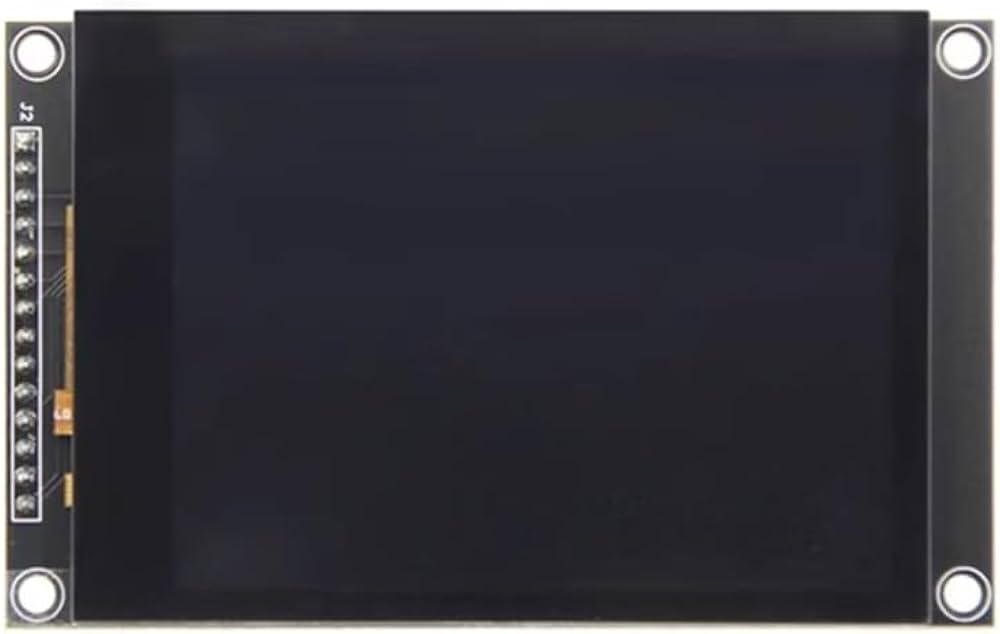

The 3.2-Inch Capacitive Touch SPI LCD Display is a vibrant 240×320 resolution IPS screen ideal for embedded systems and DIY electronics. Designed with a capacitive touch interface, it allows smooth user interaction and offers crisp visuals from all viewing angles thanks to its full-view IPS panel.

Key Features:

  • Full-Color IPS Panel: 65K colors with excellent brightness and contrast

  • Wide Compatibility: Works with both 5V and 3.3V microcontrollers

  • Capacitive Touch Input: Smooth and responsive multi-touch capability

  • Built-in TF Slot: Easily store fonts, images, or sensor data

  • Compact SPI Interface: Saves GPIO pins for other sensors or modules

Specifications:

  • Display Size: 3.2 inches (diagonal)

  • Resolution: 240 × 320 pixels

  • Touch Type: Capacitive (optional)

  • Interface: 4-wire SPI

  • Viewing Angle: Wide (IPS technology)

  • Pixel Size: 0.20mm × 0.20mm

  • Brightness: 280 cd/m² (typical)

  • Operating Voltage: 5V

  • Backlight Current: ~95mA

  • Power Consumption: ~0.5W

  • Operating Temperature: -20℃ to 60℃

  • Connectors: 2.54mm pin header + FPC extension

  • Storage Expansion: Micro TF card slot

Applications:

  • User Interfaces for IoT Projects

  • Smart Home Control Panels

  • Real-Time Data Monitors

  • Educational Kits & Prototyping

  • Industrial Equipment Interfaces
