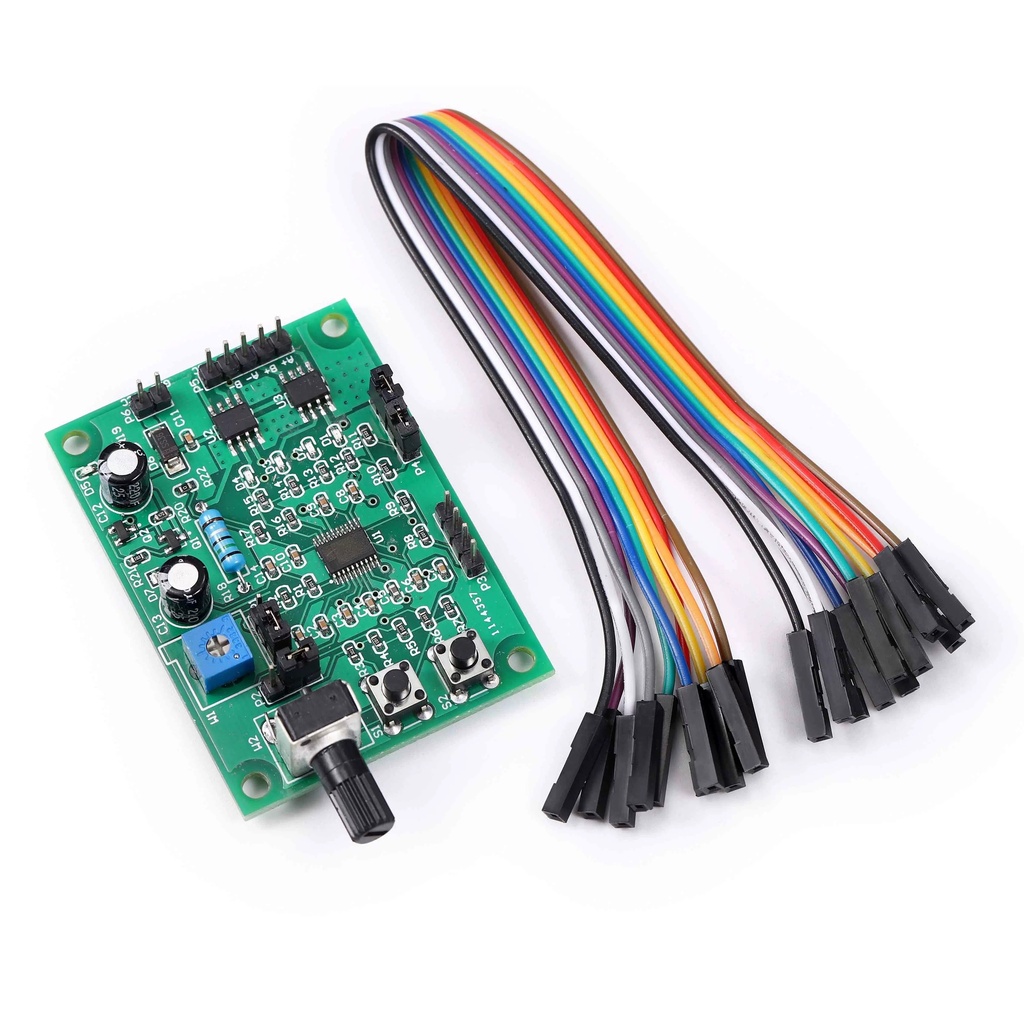

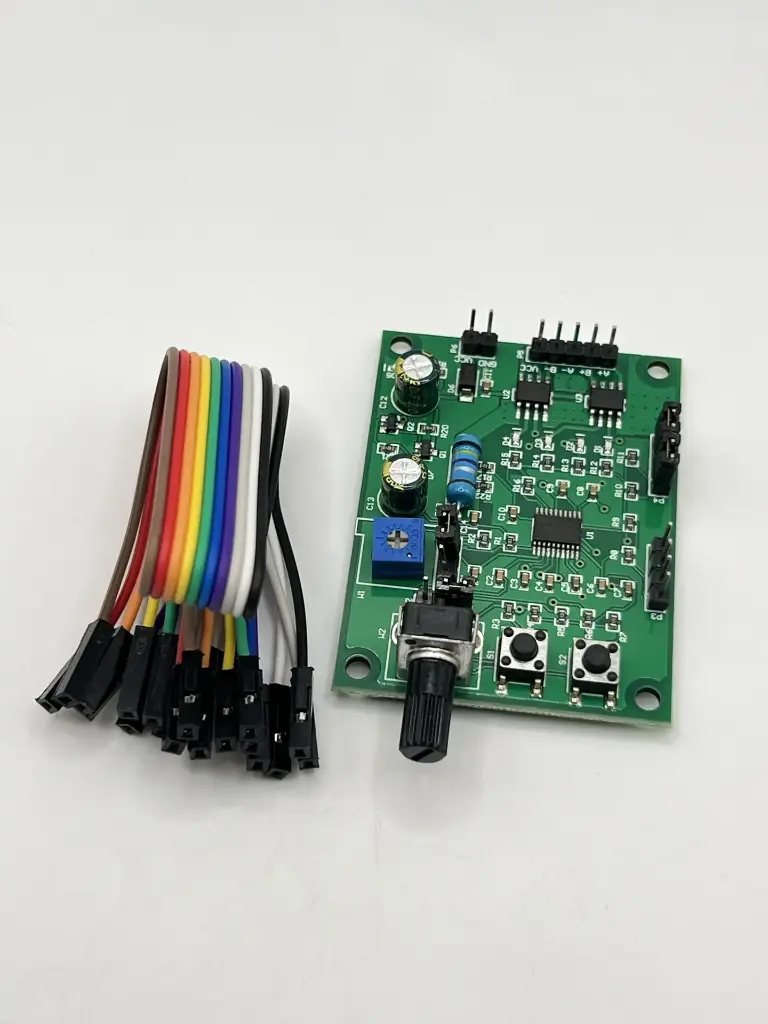

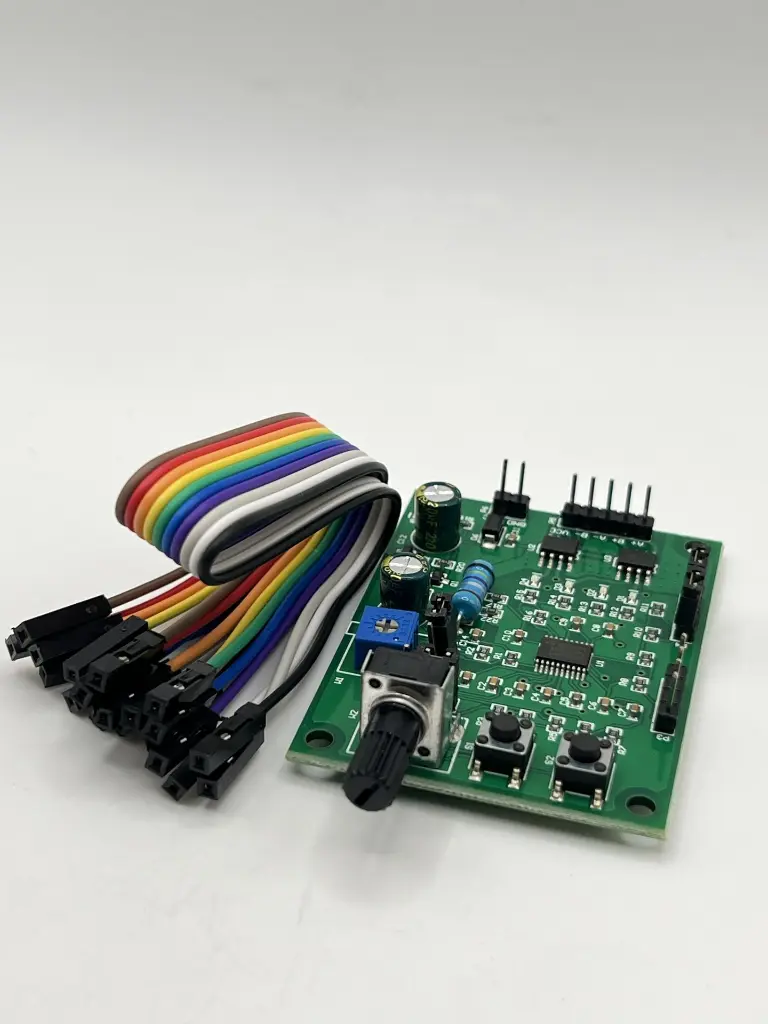

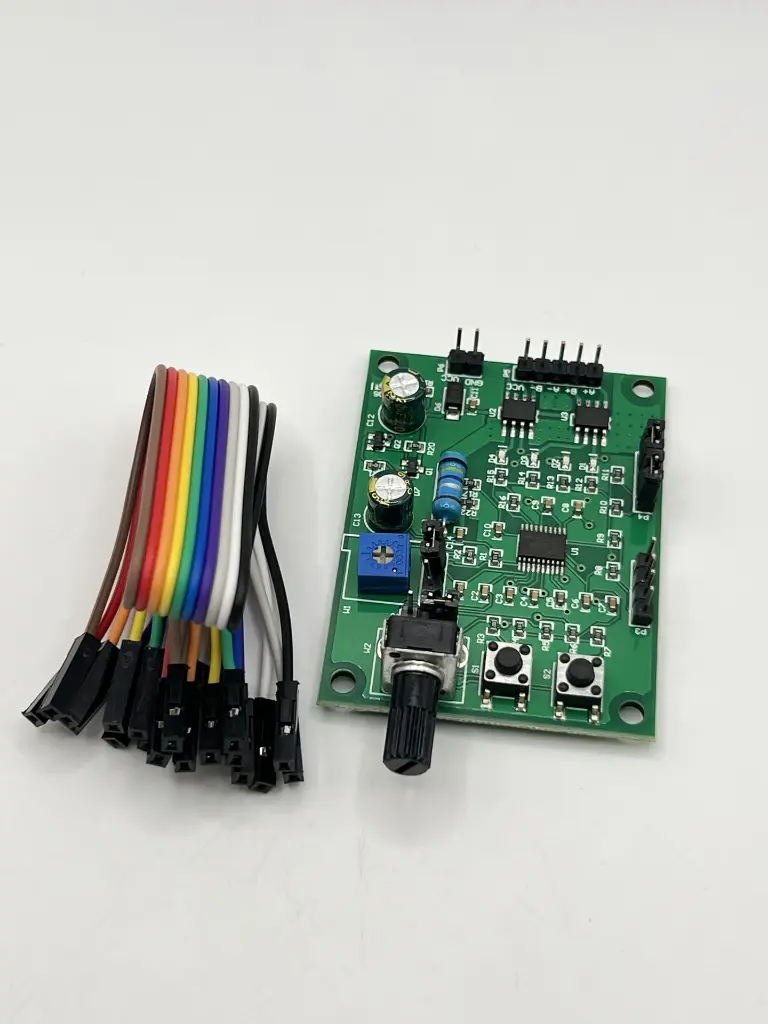

Multifunction micro stepper motor driver board

Key Features:

• Microstepping Capability: Enables ultra-smooth motor movement

• Triple Protection: Safeguards against power reversal, current spikes, and overheating

• Flexible Operating Modes: Four configurable motion control settings

• External Limit Switch Input: Supports travel limit switch for precise positioning

• Compact & Lightweight: Easy integration into small enclosures or robotics projects

Technical Specifications:

• Operating Voltage: DC 5V to 12V

• Rated Current: Up to 800mA

• Board Dimensions: 60 × 44 × 16 mm

• Microstepping Support: Yes

• Protections:

  • Reverse power connection

  • Overcurrent protection

  • Overheat protection

• Travel Switch Support: External switch compatible

Applications:

• Robotics: Smooth joint actuation and motion sequences

• Automated Machinery: High-precision motor control in factory systems

• STEM & Education Projects: Demonstrates stepper control principles

• 3D Printers & CNC Systems: For precise, scalable movement control

• Prototyping & DIY Builds: Ideal for compact or custom motorized systems
