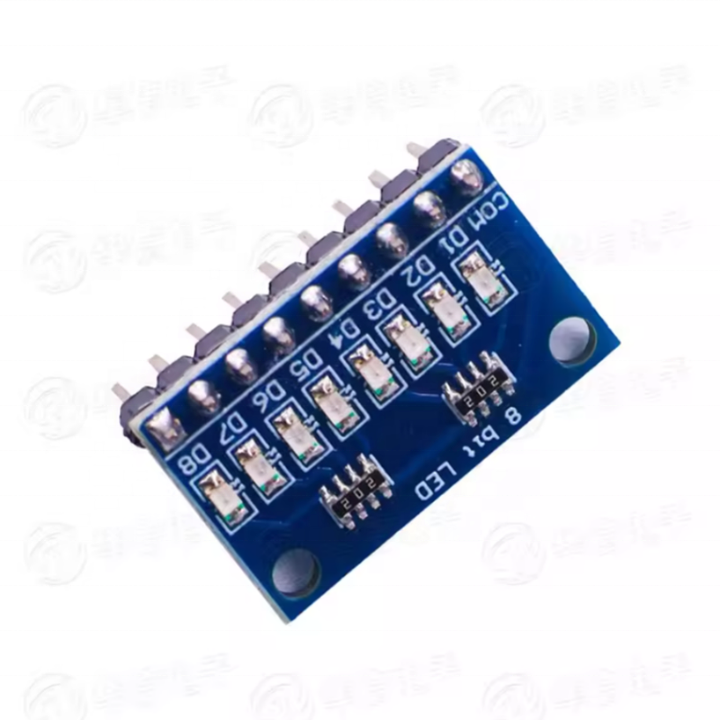

8 bit red LED module
The 8-Bit Red LED Bar Module is a versatile, compact LED display component ideal for a wide range of embedded applications. Whether you're debugging digital signals, designing user interfaces, or building educational projects, this module offers a simple, visual way to display binary values, sensor readings, or system states.
Key Features:
-
Clear Binary Display – Easy to read and ideal for digital signal output
-
Flexible Polarity Options – Available in both common anode and common cathode
-
Plug & Play Compatibility – Standard pin spacing for quick breadboard or PCB integration
-
Microcontroller-Friendly – Compatible with Arduino, STM32, ARM, FPGA, PIC, MSP430, etc.
-
Ultra-Compact Design – Saves board space in dense electronic layouts
Specifications:
-
Type: 8-bit LED Bar (Red)
-
Operating Voltage: DC 3V – 24V
-
Configuration: Common Anode / Common Cathode (selectable)
-
Pin Spacing: 2.54mm (standard breadboard pitch)
-
With or Without Pins: Available
-
Dimensions: 22.86mm x 14.13mm x 2.11mm
-
Weight: 1.3g (with pins), 0.75g (without pins)
Applications:
-
LED status display in control panels
-
Digital signal testing and debugging
-
Binary counters and bar graph indicators
-
DIY electronics and educational kits
-
Embedded system user interfaces
