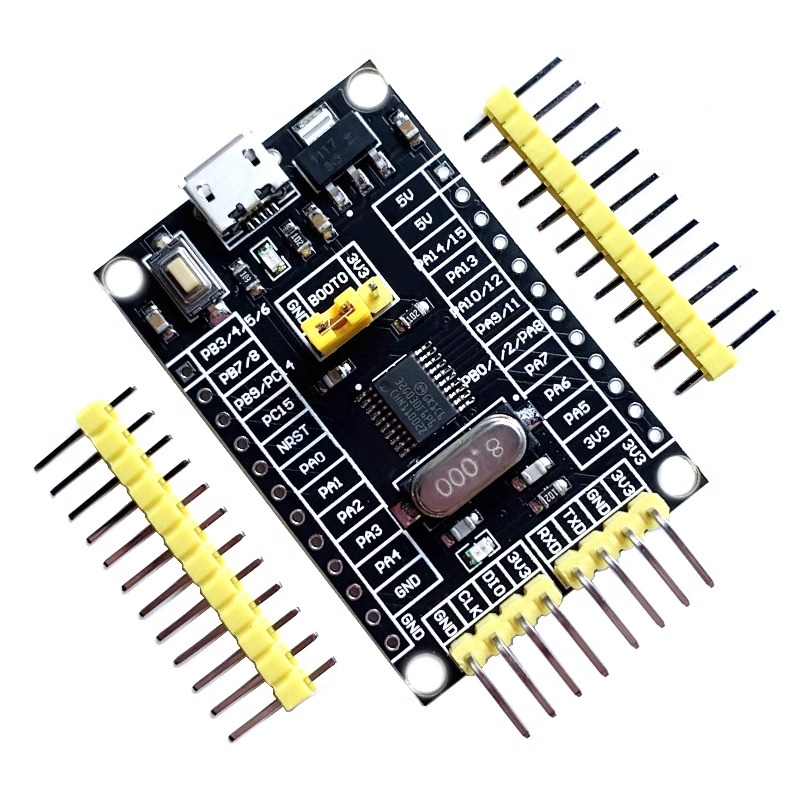

STM32G030F6P6 development board
The STM32G030F6P6 Development Board is a compact, high-performance minimum system board based on the ARM Cortex-M0+ processor. Designed for learning, prototyping, and embedded development, it integrates key components for stable operation, including a precision 8 MHz external crystal, AMS1117-3.3V regulator, boot selection circuit, and SWD interface for easy debugging.
Key Features & Specifications:
-
Microcontroller: STM32G030F6P6 (ARM Cortex-M0+ core)
-
Clock Source: 8 MHz high-speed external crystal
-
Power Regulator: AMS1117-3.3 for onboard 3.3V logic
-
Debug Interface: SWD (Serial Wire Debug)
-
Boot Configuration: Dedicated boot selection circuitry
-
GPIO Access: Nearly all I/O pins exposed
-
Indicators:
-
Power LED (PWR_LED)
-
User LED (default PC6; optionally PA15)
-
-
Power Supply Options:
-
Micro USB (5V)
-
SWD header (2.7V–3.6V)
-
External via VIN pin (5V–12V)
-
âš ï¸ Warning: Avoid using multiple power sources at once to prevent hardware damage.
Applications:
-
Embedded system prototyping
-
STM32G0-based application evaluation
-
Educational MCU learning and experimentation
-
Peripheral interfacing (I2C/SPI/UART GPIO testing)
-
Compact industrial controller development
