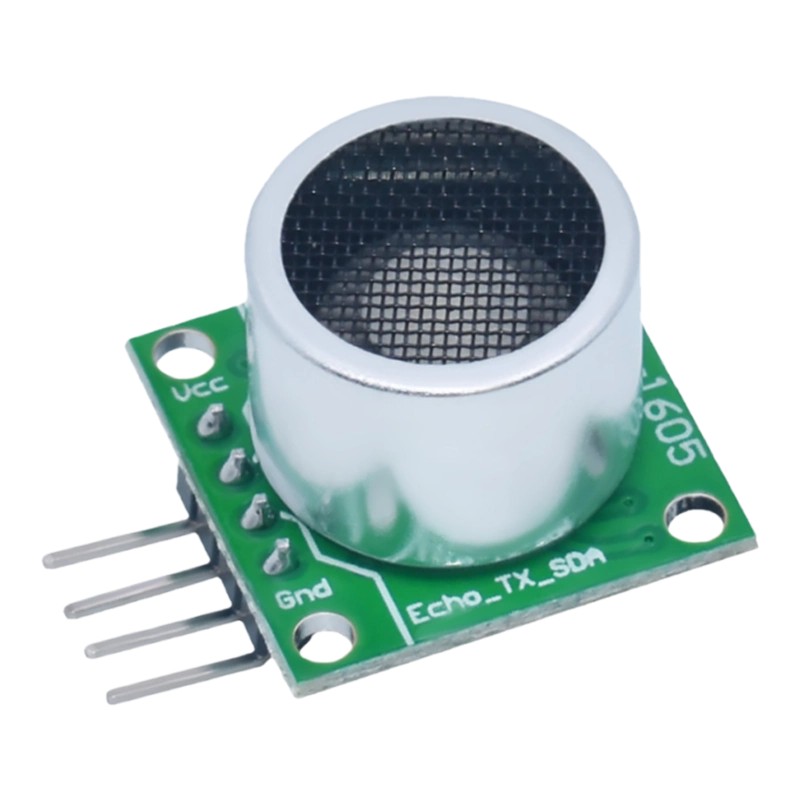

RCWL-1605 Ultrasonic Transceiver

https://www.hub360.cc/web/image/product.template/17077/image_1920?unique=d4f4b80
(0 review)

₦ 3,700.00 3700.0 NGN ₦ 3,700.00

₦ 3,700.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us
The RCWL-1605 Ultrasonic Transceiver is a compact, integrated ultrasonic ranging module designed for high-efficiency, low-power distance measurement applications. Fully compatible with the widely-used HC-SR04 interface, it supports multiple output modes including UART, I2C, 1-Wire, and GPIO, making it highly adaptable for embedded systems, robotics, and IoT solutions.

Key Features:

  • HC-SR04 Compatibility: Drop-in replacement with added features

  • Multiple Output Modes: UART, I2C, GPIO, 1-Wire supported

  • Low Power Usage: Only 2mA current draw, ideal for battery-powered devices

  • Reliable Range Sensing: 25 cm blind zone with a 4.5 m detection range

  • Built-In Smart Chip: Uses proprietary RCWL-9625 for enhanced performance

  • Wide Voltage Support: Operates between 2.8V and 5.5V

Specifications:

  • Model: RCWL-1605

  • Chipset: RCWL-9625

  • Operating Voltage: 2.8V – 5.5V

  • Operating Current: 2mA (ultra-low power)

  • Blind Area: 25 cm

  • Max Range: 4.5 meters (typical)

  • Output Modes: GPIO (default HC-SR04 mode), UART (9600 bps, N, 1), I2C, 1-Wire

  • Compatibility: HC-SR04 protocol

  • Trigger Signal: ≥10µs HIGH pulse on TRIG pin

  • Echo Output: Pulse width proportional to distance

  • Interface Configuration: Resistor-selectable output modes

Applications:

  • Robotics and obstacle detection

  • Smart bins and proximity-based automation

  • Reverse parking sensors or smart vehicles

  • Industrial distance measurement and automation

  • IoT devices with smart sensing capabilities
