Description
The KWS-AC300 Digital Power Meter is a multifunctional electricity monitoring device designed for real-time measurement of voltage, current, power, energy, frequency, and temperature. With a clear color LCD display, it provides accurate readings at a glance, making it ideal for residential, commercial, and laboratory applications.
Key Features
- Wide Measurement Range:
- Voltage: AC 50–300V
- Current: 0–100A (with external current transformer included)
- Power: 0–30kW
- Energy: 0.01–19999 kWh
- Real-Time Monitoring: Displays voltage, current, power, energy, power factor, time, and temperature simultaneously.
- High Accuracy: Equipped with a precision current transformer for reliable measurement.
- Temperature Monitoring: Supports measurement from 10°C to 99°C, useful for load and environment checks.
- User-Friendly Display: Color-coded values for easy identification:
- Voltage (Blue)
- Current (Red)
- Power (Yellow)
- Energy & other metrics (Cyan/White)
- Data Logging: Tracks energy usage up to 19,999 kWh.
- Compact & Lightweight: Easy to install with mounting options.
Specification
- Model: KWS-AC300-100A
- Input Voltage: AC 50–300V
- Current Range: 0–100A
- Power Range: 0–30kW
- Energy Range: 0.01–19,999 kWh
- Timing: 0–200H
- Temperature Range: 10°C–99°C
- Weight: 95g (with CT sensor)
- Dimensions (approx.): Standard panel size with mounting holes

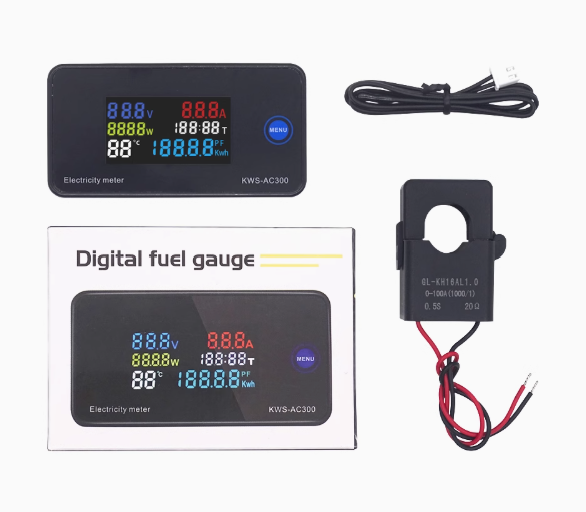

Package Includes:
- 1 × KWS-AC300 Digital Power Meter
- 1 × 100A Current Transformer (CT Sensor)
- 1 × Connection Cable
- 1 × User Manual
Application
- Household appliance monitoring
- Industrial equipment testing
- Renewable energy systems (solar, wind)
- Workshops and labs
- Educational and STEM projects
